| Interface | Network | 1*1000Mbps LAN |
| SIM | 2FF | |
| Button | Reset | |
| Type-C | Firmware upgrade | |
| POE | Input voltage:24V | |
| Solution | 5G Module | ML568-EU |
| 5G Module processor | MT6835T | |
| 5G/4G/3G | 3GPP Release | 5G NR (3GPP Release 16) |
| 5G Modulation | DL 256QAM, UL 256QAM | |
| 4G Modulation | Supports UL QPSK, 16QAM, 64QAM and 256QAM modulations Supports DL QPSK, 16QAM, 64QAM and 256QAM modulations |
|
| 3G Modulation | QPSK、16QAM、64QAM | |
| Band | 5G NR:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/ | |
| LTE-FDD :B1/B3/B5/B7/B8/B20/B28/B32 | ||
| LTE TDD:B38/B40/B41/B42/B43 | ||
| WCDMA B1/B5/B8 | ||
| LTE Feature | Support 1.4/3/5/10/15/20 MHz bandwidth | |
| DL support 2 × 2 MIMO | ||
| 4G Mode: 400 Mbps (DL)/211 Mbps (UL) | ||
| UMTS Feature | Support DC-HSDPA HSDPA HSUPA HSPA+ WCDMA | |
| DC-HSDPA: 42 Mbps (DL) / DC-HSUPA: 11.5 Mbps (UL) WCDMA: 384 kbps (DL)/384 kbps (UL) |
||
| 5G NR Feature | 5G NR NSA Mode: 2.75 Gbps (DL)/736 Mbps (UL) 5G NR SA Mode: 3.27 Gbps (DL)/1.25 Gbps (UL) |
|
| WIFI | Solution | MT6631N |
| Protocol | 2.4G : 802.11b/g/n 150Mbps
5G:802.11a/n/ac 433Mbps |
|
| Software | Language | English |
| WIFI | Supported | |
| Network info | IMEI/IMSI/ICCID/RSRP/RSRQ/RSSI/SINR/PCID/EARFCN/Frequency | |
| DHCP server | Supported | |
| DHCP client list | Supported | |
| APN Setting | Supported | |
| Network Lock | Supported | |
| Band Lock | Supported | |
| PIN Management | Supported | |
| DHCP Client | Supported | |
| SMS | Supported | |
| NTP | Supported | |
| system upgrade | Local upgrade/FOTA | |
| Reboot and Reset | Supported | |
| Signal bar | Supported (WEBUI) | |
| Tr069 | Supported | |
| Login Account Settings | Supported | |
| Environment | Operating temperature | -10 to 50° C |
| Storage temperature | -40 to 85° C |

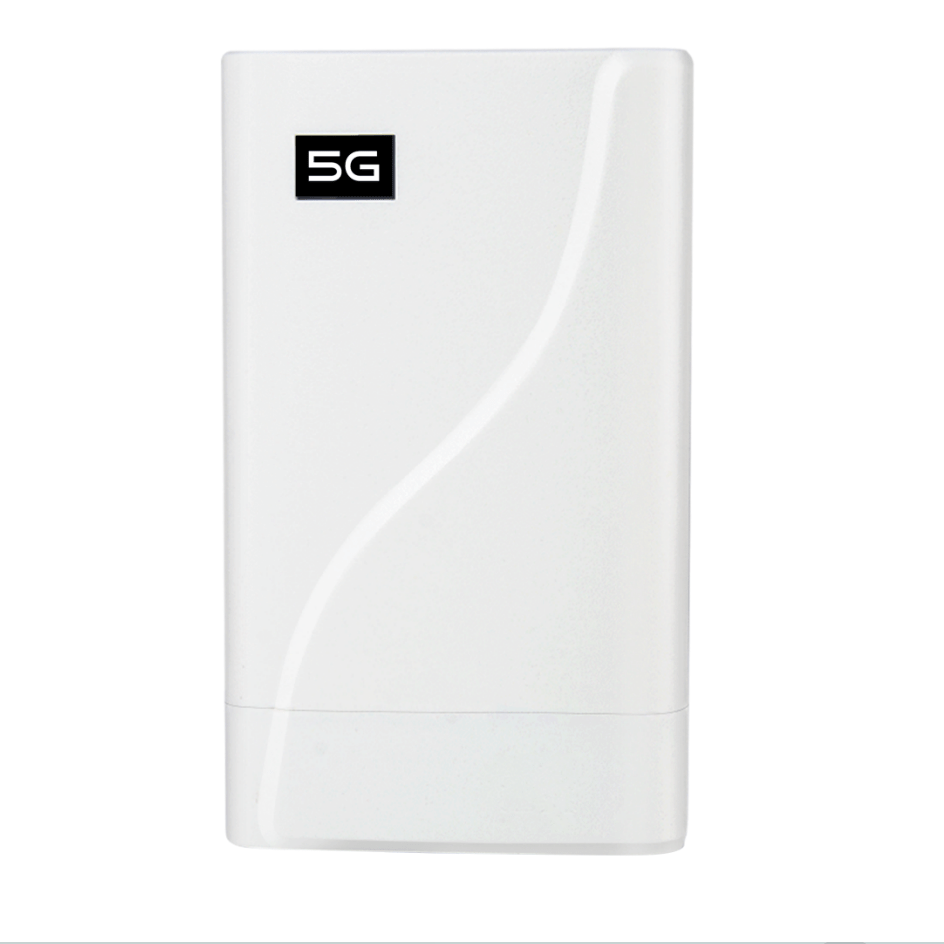

5G ODU for outdoor
Our advanced 5G Outdoor Unit (ODU) is meticulously engineered to tackle the persistent challenge of weak and unreliable indoor 4G/5G cellular signals. Designed as a robust external receiver, it captures high-quality signals from nearby cell towers with exceptional efficiency, effectively overcoming signal attenuation caused by building materials like concrete, metal, or energy-efficient glass.
This 5G ODU is not just a signal extender; it’s a powerful solution that brings carrier-grade connectivity to your doorstep. By mounting the unit outdoors—on a roof, wall, or pole—it establishes a strong, stable link to the network, ensuring you get the most out of your data plan. The device is built to withstand harsh weather conditions, guaranteeing year-round performance.
For optimal results, this ODU is designed to work in seamless conjunction with an indoor Wi-Fi router. It connects directly to your router via an Ethernet cable, effectively transforming your indoor router into a high-speed 5G gateway. This powerful combination delivers ultra-fast, low-latency internet to all your devices, enabling smooth 4K streaming, lag-free online gaming, and reliable video conferencing, even in areas previously plagued by poor coverage.
